I’ve come to the conclusion that renovating a space is not entirely unlike creating a Frankensteinian monster.  Don’t get me wrong, I don’t expect our In Law unit to terrorize the village locals; nor do I expect it to require a jolt of lightening before I can call this project complete.  With that said, there are some similarities that should not go unappreciated.

If you think of renovating as being a series of phases, we begin with the demolition phase.  From a Frankenstein standpoint, this might include digging up bodies and harvesting the good parts and chucking the bad parts.  “Oh..that legs is missing a foot, let’s go ahead and scratch that.  Onto the next body.”  From a building standpoint, you open up the walls and identify the rotten wood, or broken pipes.  Then you try to identify the parts of the space you plan on keeping.

compare1

Then you’re onto phase two, “repair.”  Now if I was a mad scientist, this is when I’d start opening things up and shoving things into place.  A kidney here, a femur there, etc.  As more of a mad-DIY’er than a mad-scientist, in this phase I prefer to put a floor in here and a wall in there.

sanitary

Now, we’re onto the last phase, the “finishing” phase.  This would be when I (the mad scientist side of me) might stitch up the holes, put on the little neck bolts, hook my beast up to a lightning pole and hope for the best.  This would understandably be the most anxiety producing phase of the project.  Questions, that I might not want to know the answer to would go flying through my head, such as… “Will my monster eat children?  Will he chase screaming farmers off their land making it that much harder to find organic vegetables in the village?”

Now, as a DIY’er, this is the phase that has the highest level of instant gratification.  This is when the work space magically transforms and reflects its own personality and character (more like a butterfly than a crazed zombie beast).

finishing

This, my DIY following friends, is the phase I’m after!!  This is the prize I have my eye on!

The “Finishing” phase is right around the corner!  I am officially in the final throes of the “Repair” phase and after a few stitches supports here and a new kidney electrical outlet there, I’ll finally get to move onto the finishing phase!  (and don’t think I won’t yell “IT’S ALIVE!” when this is all over).

Here’s the list of everything that needs to be done before I can put up drywall.

  1. Raise the closet floor
  2. Add support where the wall mounted TV will be installed
  3. Add support where the sliding door tracks will be installed
  4. Stain the joists
  5. Insulate the walls
  6. Install the tub
  7. Add electrical outlet in the kitchen

So far I’ve knocked 4 items off my list.  Here’s the summary:

The Closet Floor:

Now that all of you blog readers are well versed in the art that is installing a floor, I will spare you the details of what it took to raise the closet floor.  Instead, I’ll show the summary in picture form:

closet1

As you can see in the picture above, there is a significant drop off from the main floor of the room to the closet floor.  While this didn’t bother me for a long time, when someone asked me about it the other day I decided that it would make more sense to bring it up to the height of the floor.

closet2 closet3

closetfloor

Unfortunately, the floor is about 1/2″ higher than the main room, but that may be able to be fixed when I put the new finished floor in.  At least you won’t break your leg when trying to get a shirt out of the closet.  It’s a…step…in the right direction. Get it? “Step” in the right direction.

Okay, moving on.

Support for Wall Mounted TV:

Here I just added a couple 2×4’s to the wall to give me something solid for the future attachment of the wall mounted TV arm.

BEFORE:

tv

AFTER:

tv2

Support For Sliding Door Tracks

As you know we will have two wall-mounted sliding ‘barn’ doors in this room.  One door will be for the closet and the other will be for the bathroom.  Both of these sliding door tracks will be holding anywhere from 75lbs to 200lbs, depending on what type of door I decide to buy or build.  These tracks will require a lot of support to carry that weight.

Here are the new supports for these doors:

Barn Style Sliding Closet Door:

BEFORE:

track2

AFTER

newdoor

Bathroom Door

The bathroom door will also be on a wall mounted track, although this one will be a little smaller to fit in the limited space.

bathroom1

AFTER:

bathroom2

Stain The Joists:

As you may recall, I intend to drywall between the ceiling joists so that about 2″ of wood remains exposed.  Since half of the room has beautiful old (original) Douglas Fir ceiling joists, and the other half of the room has new construction Douglas Fir, there is a noticeable difference between the colors of the two types of wood.  The old wood is dark and rich like a freshly brewed cup of coffee, while the new wood is bright and golden like the afternoon sunshine.

stain2

To create some degree of continuity, I decided to stain the new wood to get it to a closer color match with the old wood.  Unfortunately, trying to reflect the difference in photographs is quite hard.  The main beam, however, is big enough that you can see the difference in color.  Check it out…

BEFORE:

stain1

AFTER:

beam

stain3

With that work done, all I need to do is get the electrical to install one more outlet, get the plumber to set the tub and I’m on to insulating the walls and putting up drywall.  Then things will get really exciting!

Advertisement

I am officially at a crossroads.  What do I work on next?  In all honesty, there is no shortage of work to complete, which might be part of the problem.  It’s sort of like being  a kid in a candy store.  While I want to eat tackle a bunch of candy tasks all at once, I’m afraid that after the sugar-rush thrill wears off I’m just going be an over indulgent DIY’er laying on the ground with a stomach ache.   To avoid this sugar coma I’ve decided to narrow my focus down to one task.  Wall framing.

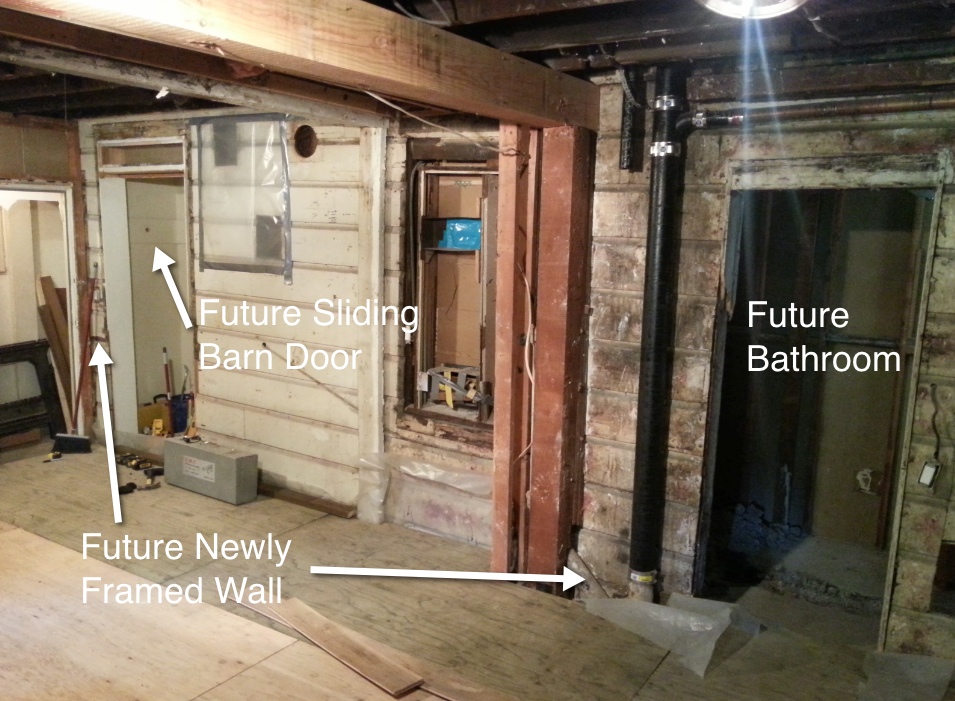

Much like the floor, framing a wall sounds easy in theory, but I have a feeling it will be much more complex when I really sink my teeth into it.  On a positive note, I think we’ve come to a decision on how the wall will look down the line.  Here’s what we’re working with right now:

future

Now you might remember in one of my earlier posts that I discussed the idea of installing a sliding barn-door in front of the closet.  In case you need to refresh your memory, here’s a link to that post:

The Hassle of Doors

The plan is still to cover the closet with a sliding barn door, however, the plan has evolved a bit since I last posted about it.  Rather than building a wall, covering it in drywall and calling it a day, the new plan is to take the extra step to cover that wall in wood paneling.

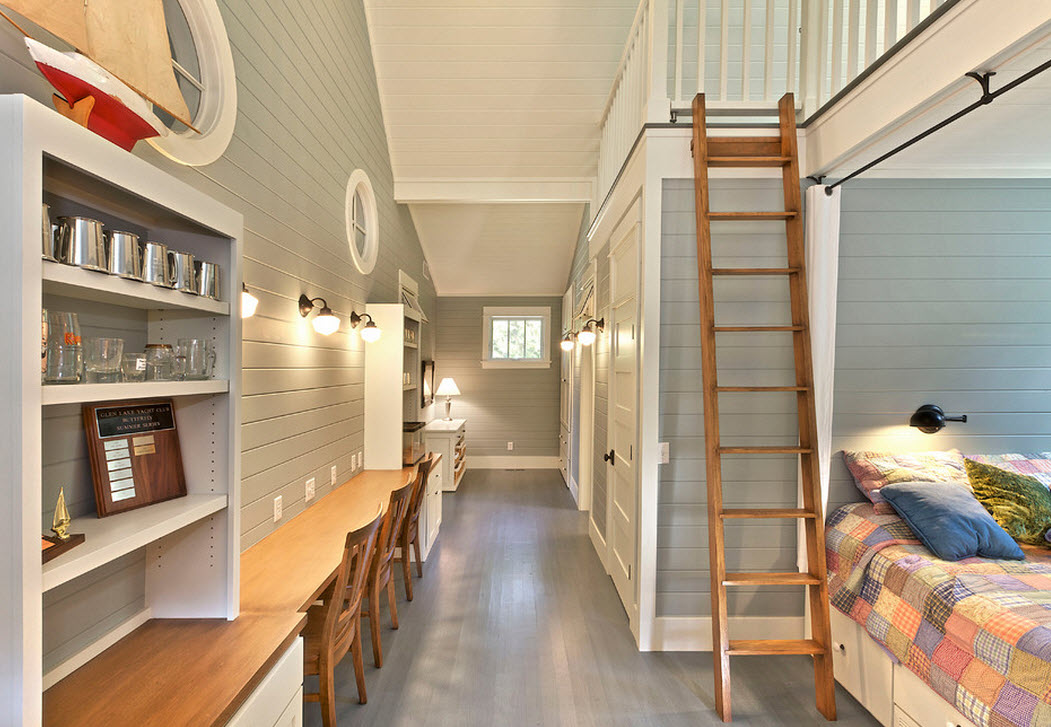

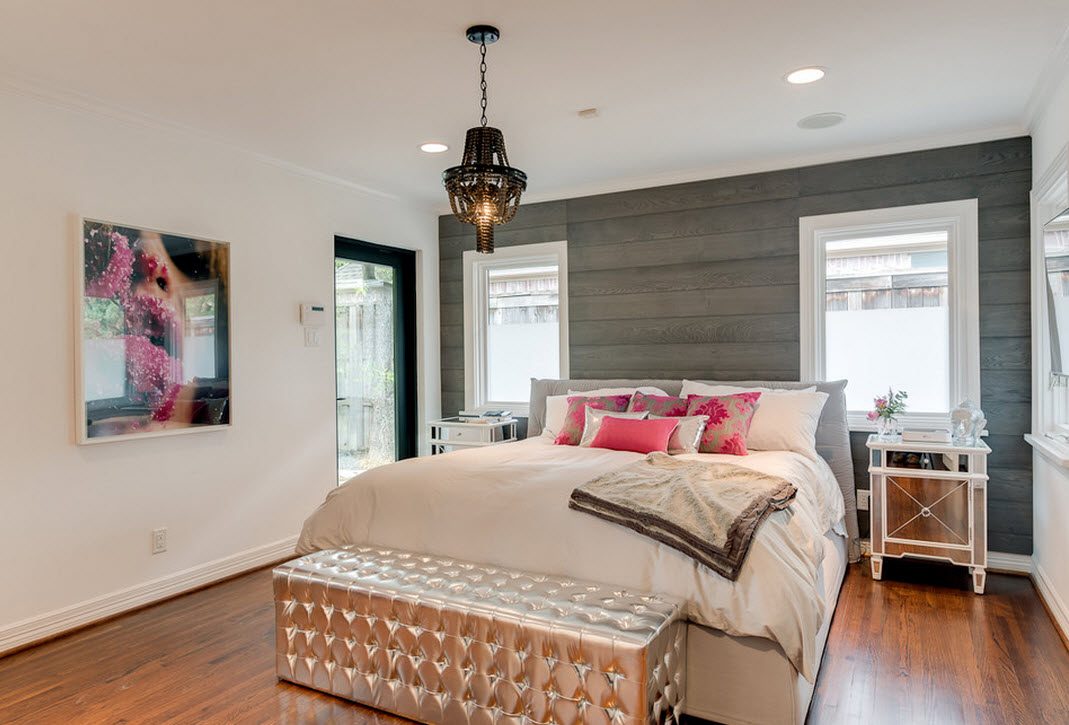

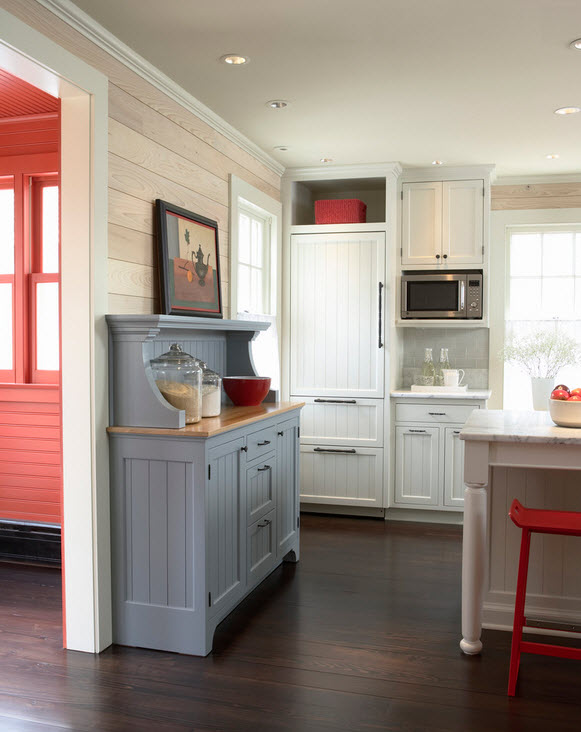

Here are a few pictures of different paneling options that I like:

wall1



wall3



wall4

wall2

To aid me in my quest for wood paneling, I decided to call upon the discarded and disheveled masses.  The cast aways.  Those that once had homes, but find themselves sitting patiently as they wait for that one special person who will see the beauty they possess inside, underneath the years of neglect and grime.

That’s right!  It’s salvage yard time!

Normally the salvage yard visits are more for brainstorming ideas and are less about actually finding quality merchandise; however, this weekend was different.  Leaning against a wall like a tall dark stranger, beckoning me with a bewitching glance, were two unopened boxes of unfinished walnut flooring.  I was torn.  Should I listen to my head that’s telling me to ‘stay away’ lest I be disappointed to find that underneath that dark and alluring veneer is a weathered and worn interior that has seen better days, or should I listen to my heart that says ‘go for it!’  I mean, we all have parts of us that are weathered and worn.  For me, it’s my drilling hand, so why be so quick to judge?

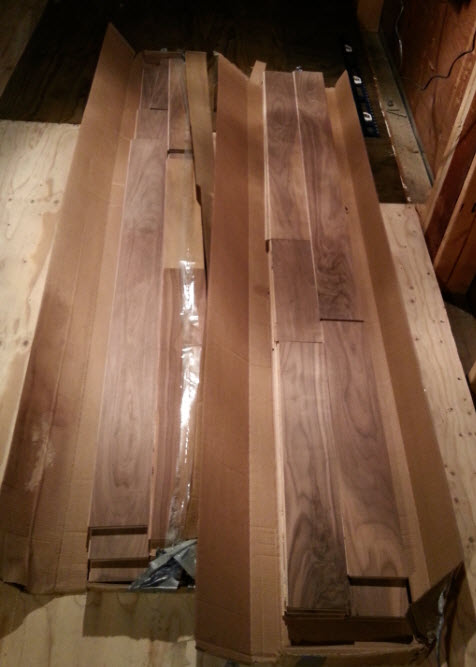

In the end, my heart won out and I went home as giddy as a school girl with these beauties:

walnut  walnut2

Now, in reality two boxes only amount to a space of about 6 feet by 8 feet.  With that said, I’m sure I can find some more walnut flooring to match, or I could even mix and match this wood with some other wood to come up with a cool look.

Either way, listening to my heart was the way to go.  I couldn’t be happier with the new additions to the household and I can’t wait to see them up on the wall!

Next up…building a wall!

You may be wondering what has been happening over the last few days.

Perhaps you have a vision of me dressed in my flannel shirt, Carhart pants and protective eyewear, revving power tools dangerously, yet thrillingly, in my hands while willing my In Law unit to build itself using pure intimidation…

me

I mean, I don’t want to say that you’re wrong, but…

As you may recall, last weekend I made some great progress on projects that required reaching over my head.  Well, what I didn’t mention was that I also made some minimal progress on projects that required me to be hunched over.  Specifically, showing that jack hammer who’s boss.  Well, as it turns out, the jack hammer is boss.  Also, I’ve renamed the jack hammer, the back hammer.

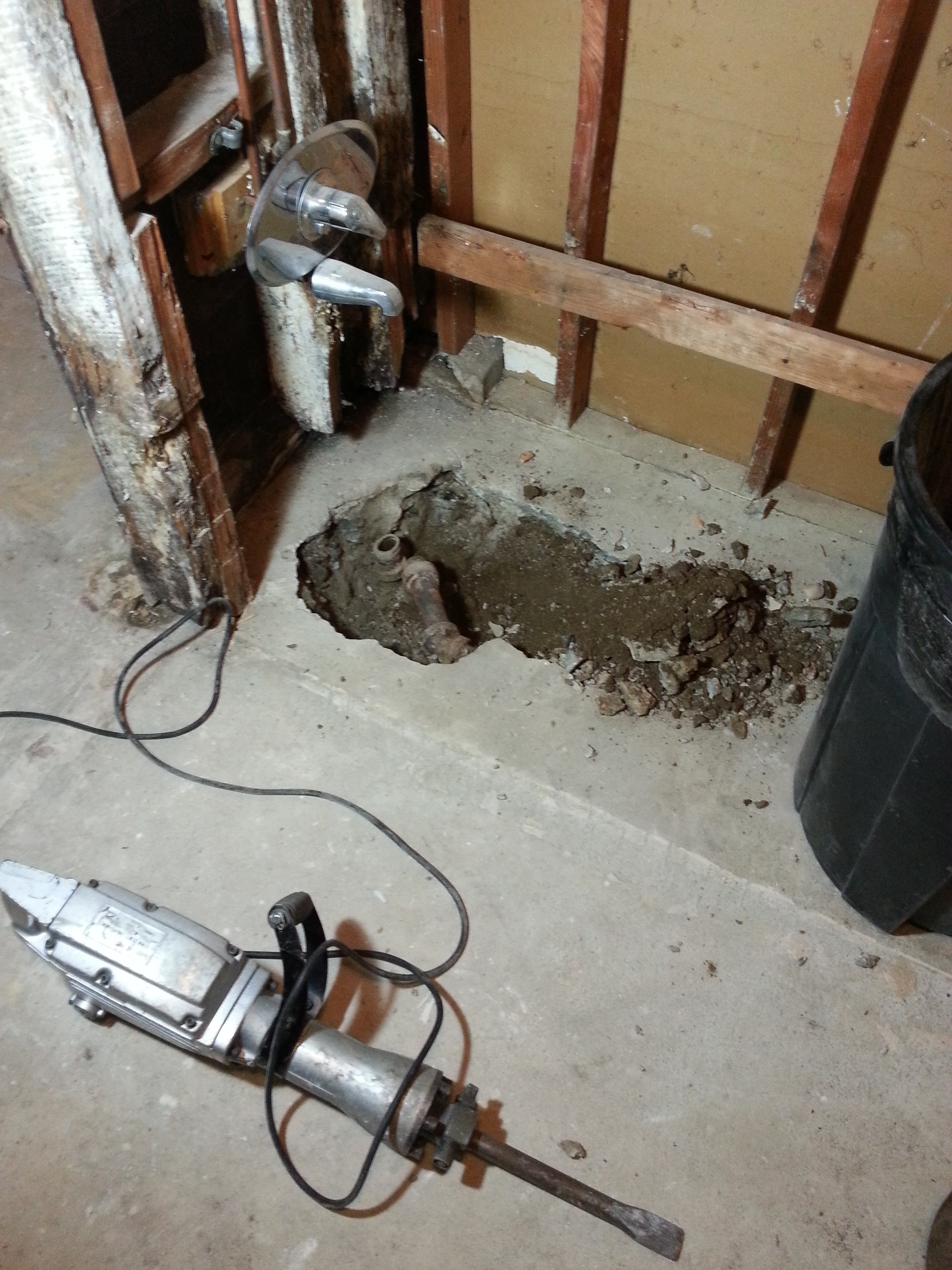

I was able to dig this hole though…

2013-03-23 14.53.46

Unfortunately, it is about half the size that it needs to be for the plumber.  I expect that digging will resume in the next few days.

In the mean time (as I let my back heal so I can once again resume back-hammering) I’ve been in planning mode.  Mostly, I’ve been dreaming about our future subfloor.  For a few reasons, not the least of which is cost, I’ve decided to build a subfloor rather than pour concrete.  This decision requires me to try and access the recesses of my mind for the little bit of geometry that I learned in high-school that remains (much of which has since been replaced by cute kitty memes)

kitten

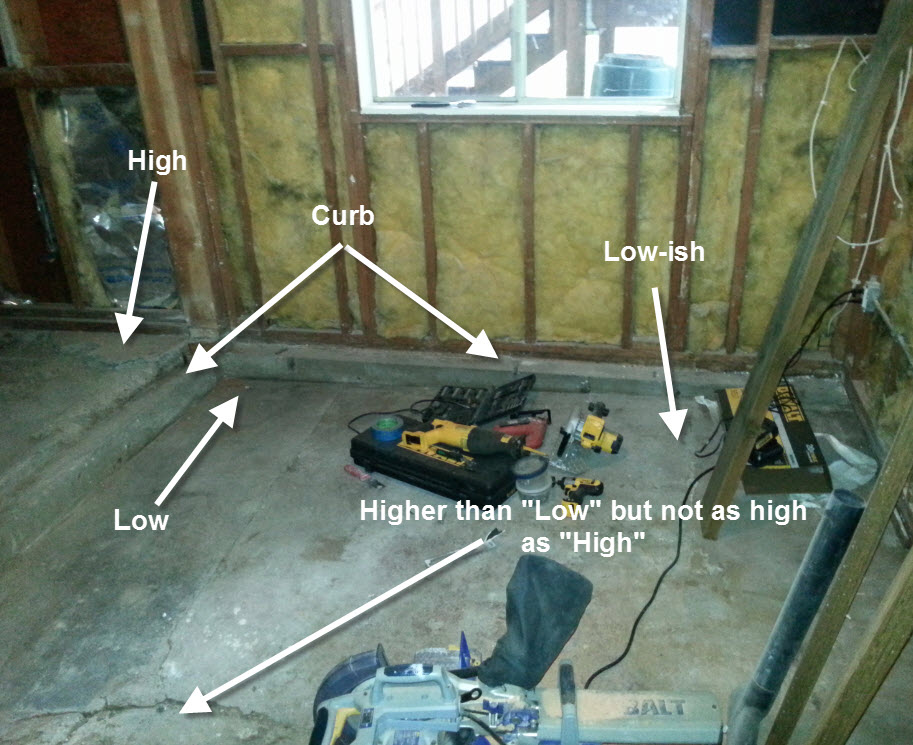

The problem is trying to build a sub-floor to handle all of the varying levels of concrete.

floor

While I’d like to try and keep the floor as low as possible (thus making the room less cave-like), I think I’ve finally come to the conclusion that it will need to be raised up a bit in order for it to be made level.  First, here’s a description of the different components of a framed a floor:

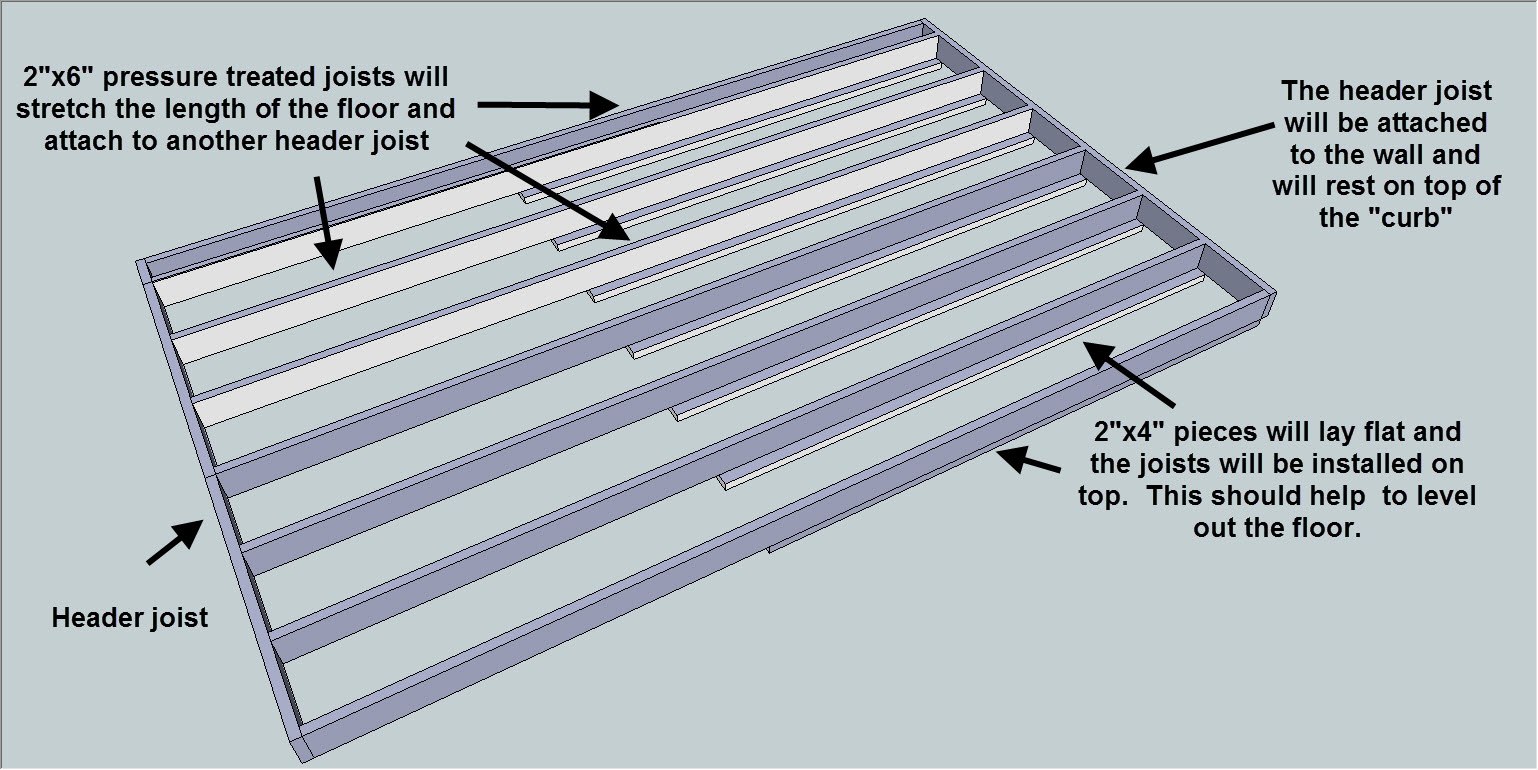

floor2

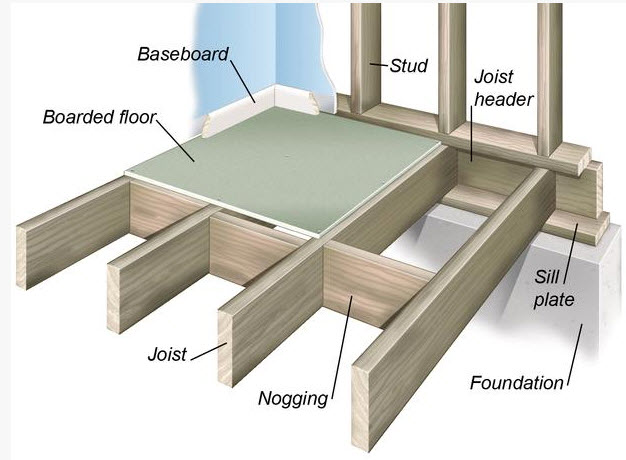

My plan is to use 2″x6″ pressure treated wood to build out the framed sub-floor. I’ll install a header joist on top of the “curb” (aka foundation) and attach it to the wall.  Since I will be using pressure treated lumber, I think I can get away with not installing a ‘sill plate.”  If you have any expertise in this area please feel free to chime in.  Adding the sill plate would raise the floor up another inch & a half, which I’d like to avoid.

From there I’ll frame out the floor.  There is about a 4″ difference in floor height from one side of the floor to the other.  I’ll have to put in a few wedges and 2×4’s to level things out, but I think I can do it.

floor

Looks easy enough.  Considering I’ve never framed anything before, I suspect I’ll learn a lot in the process of building this floor.  I find solace in knowing that the worst that can happen is that it won’t be level or that the floor will feel squishy.  Either way, it’s still an improvement over what the floor is currently like.

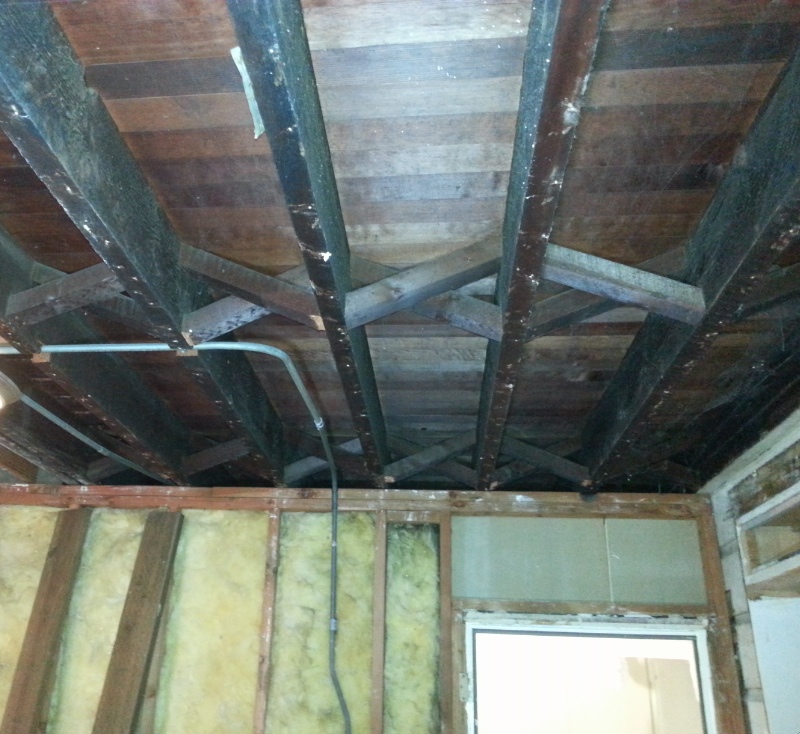

Whether it is the musty smell of 100-year-old wood and dust, or the rustic Douglas-fir beams, the more time that I spend in the completely gutted In Law unit, the more I feel like the “urban barn” look will work well in this space.  One thing, in particular, I have really been enjoying are the exposed wood beams in the ceiling.  Unfortunately, only a portion of the ceiling has the original old-growth Douglas-fir joists, but they are really beautiful.  So beautiful, in fact, that I’ve been thinking that we might keep them exposed.  Here’s a picture for you…

ceiling88

I have a meeting tonight with the electrician, which should clarify how we can approach lighting the room.  Once this is figured out we will know if we will need to cover the ceiling in drywall.  If it is possible to get the lighting that I would like while keeping the beautiful wooden ceiling that would be ideal.

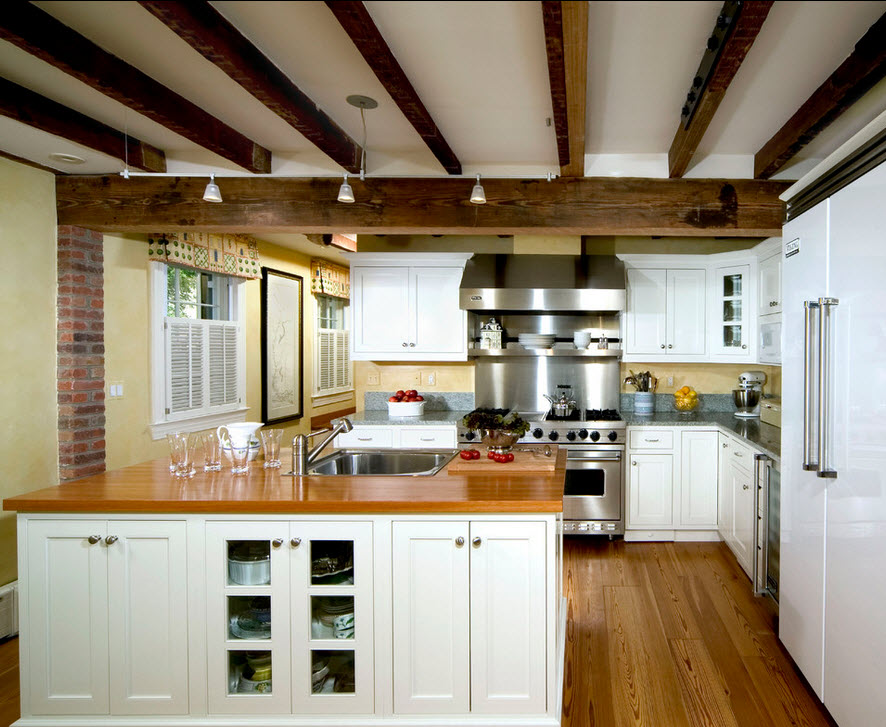

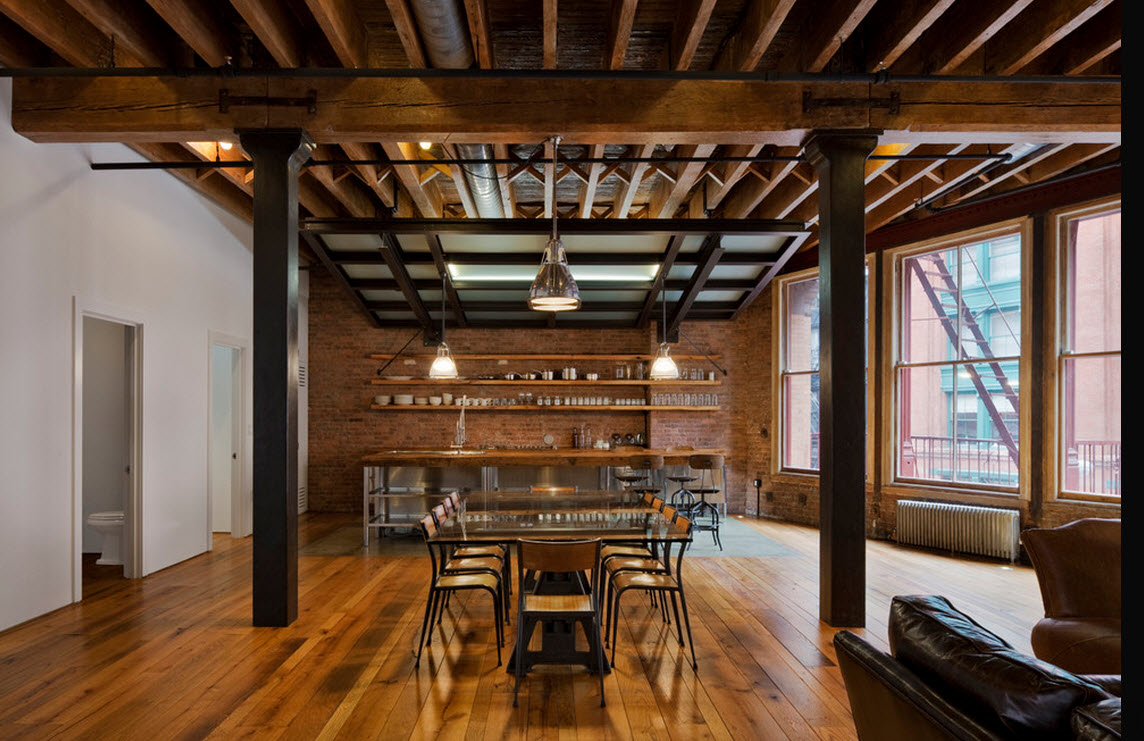

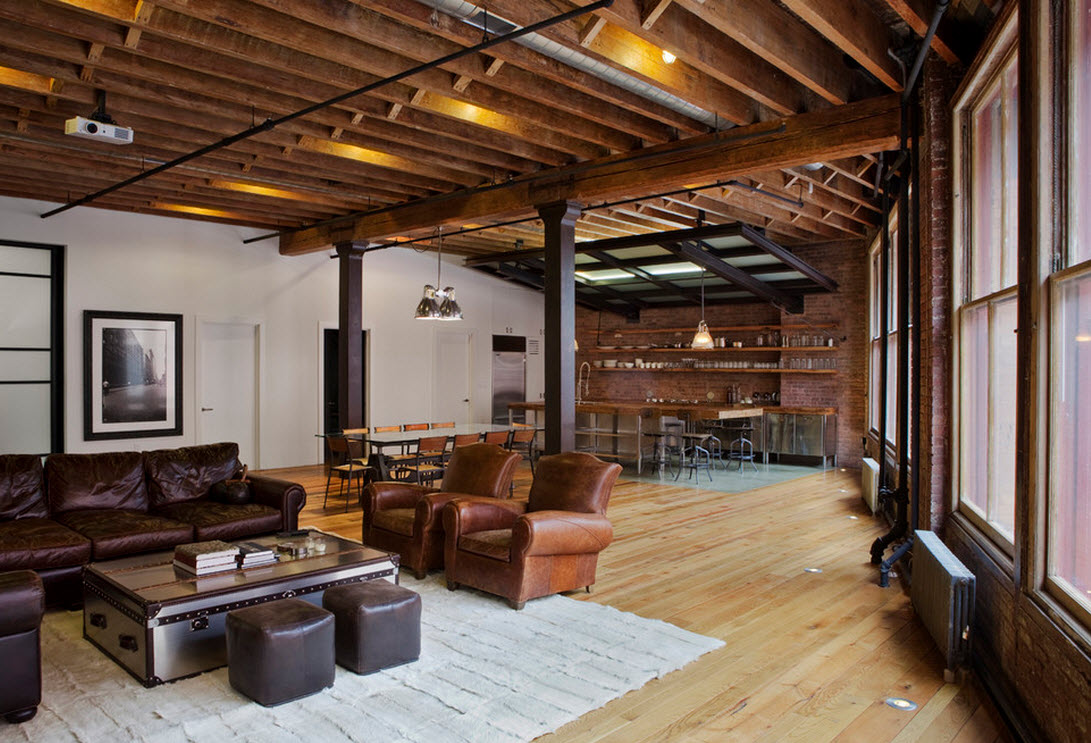

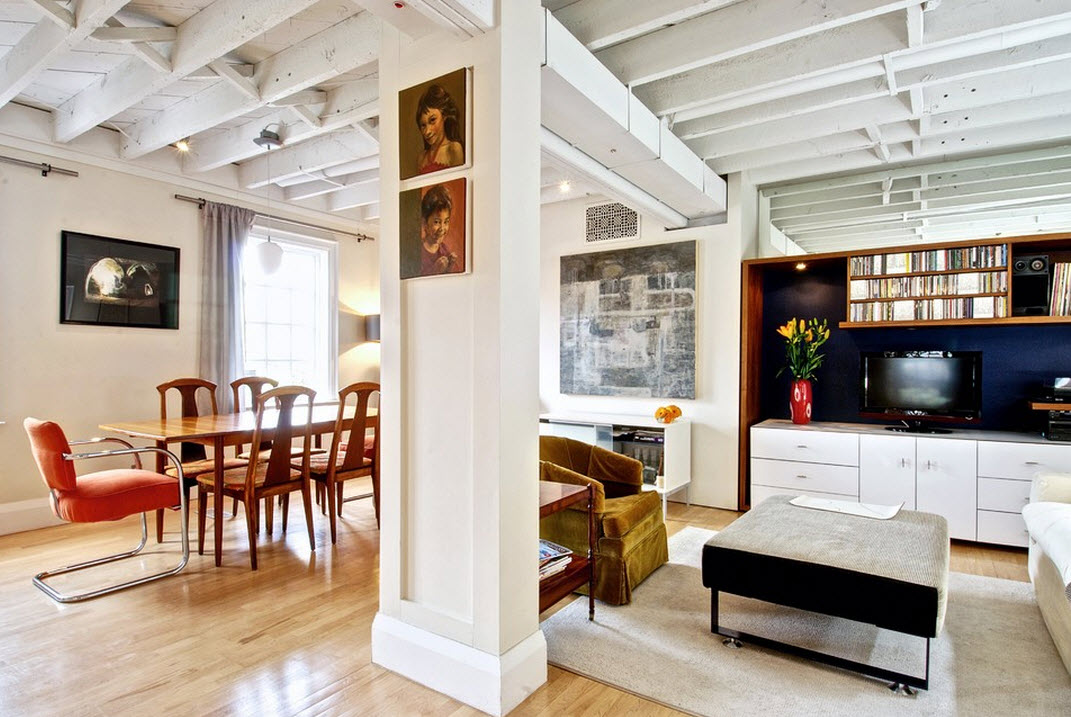

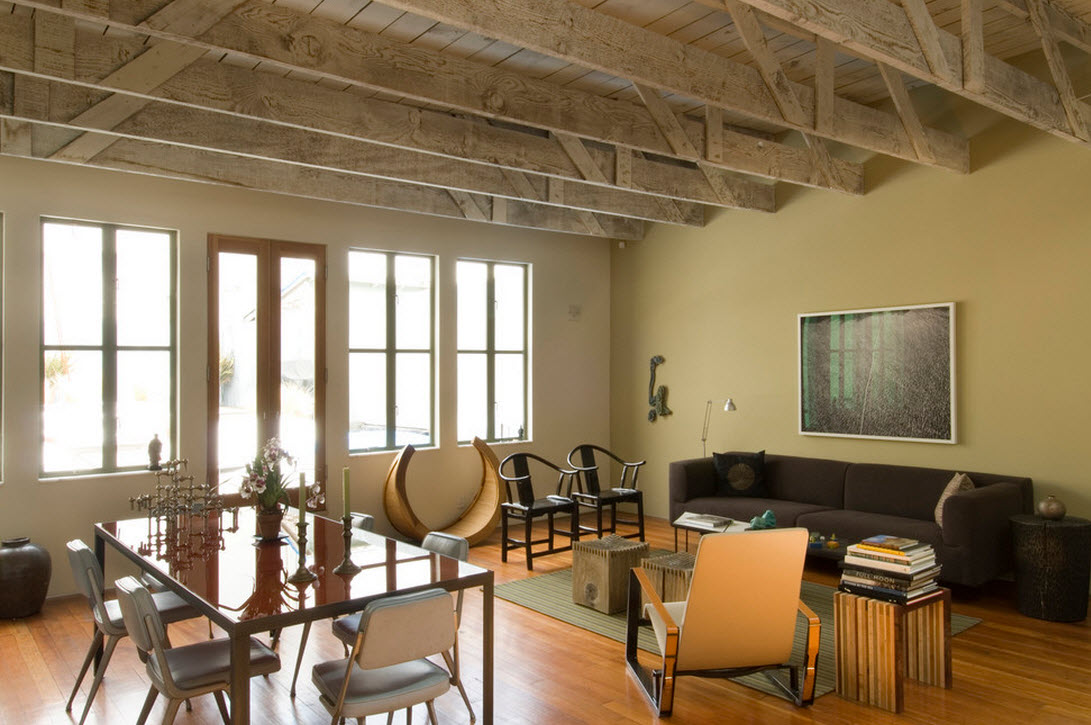

To give you a sense of what I’m thinking of, here are a few ideas I’ve found that show what a space can look like with exposed joists & beams.

ceiling1

ceiling2

ceiling5

ceiling6

ceiling3

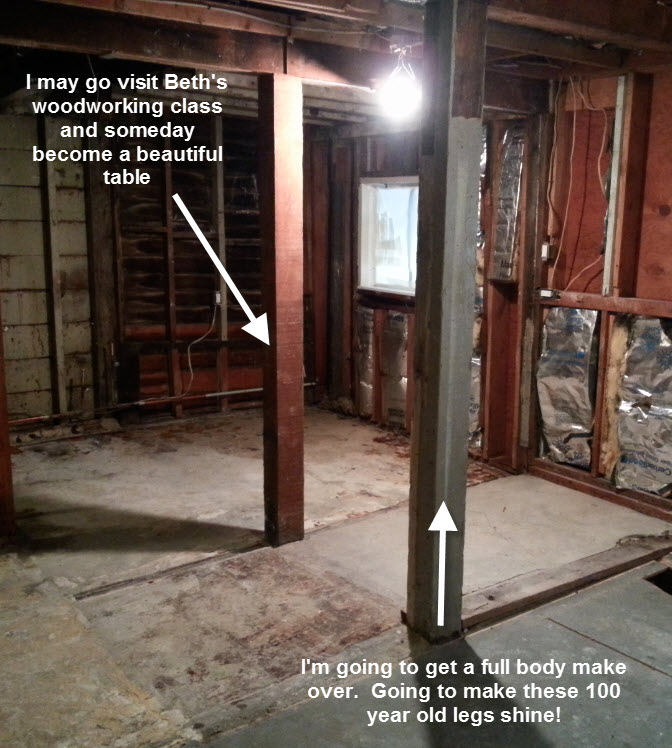

In addition to the ceiling beams, we have the large wooden columns in the middle of the room.  After consulting with the structural engineer, it sounds like we can potentially remove one of the two columns.  Whether we keep them both, or only have one column in the room, I’m looking forward to sanding it down and sealing it to expose the natural beauty of the wood.

columns2

When working in such a small space, something that always seems to get in the way are doors.  It may sound strange, but doors opening & closing can make a small room feel like it’s constantly shifting in size depending on the door’s position.  It’s like the room is breathing…or like you’re Alice in Wonderland, without eating or drinking anything.

In our old home, which was only 450 square feet, doors became a bit of a problem.  The french doors to the back yard conflicted with the bathroom door, so neither could be open at the same time.  Inevitably, there would be times when we would need to navigate the labyrinth of doors just to get to the bathroom.  Sometimes urgency requires access to the bathroom to be swift & obstacle free.

In the In Law unit, there will be four doors.

  1. The closet
  2. The bathroom
  3. The door to the yard
  4. The entry door

That’s a lot of doors for such a small space.  When it comes to the closet, I’m not a fan of accordion (or bi-fold) doors.  Maybe it’s just me, but they always seem to get stuck, or making a screeching sound when I open them.  While a pocket door might be an option, plumbing & wiring in the wall may make it impossible to install without a lot of reconfiguration.  The solution I’m considering is to install a sliding barn door.  (I know…back to that barn talk again).  I think that from an aesthetic standpoint, sliding barn doors look really cool and could fit into our rustic space quite well.  There are also a ton of options for doors and hardware.

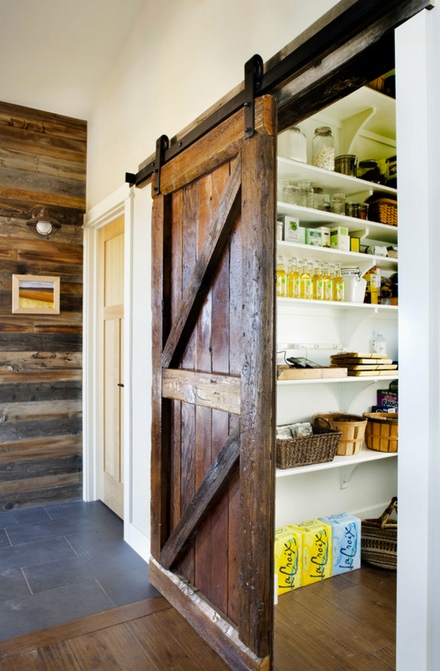

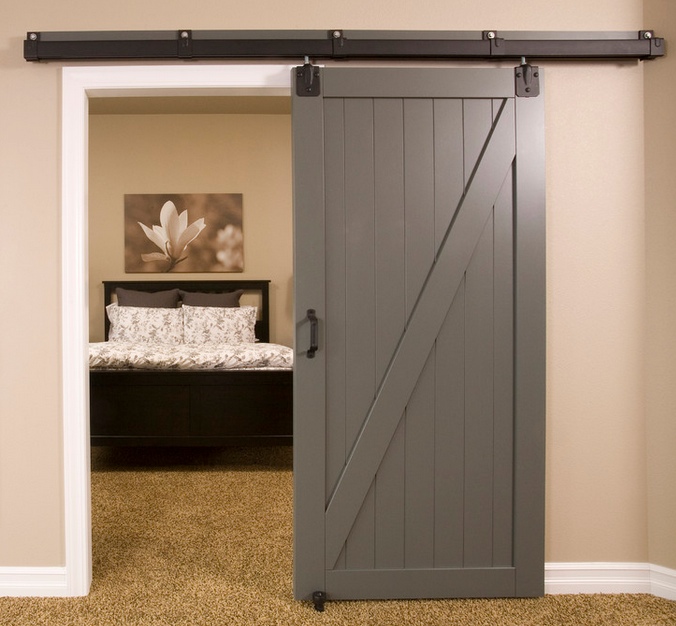

Check out some of these ideas.

barndoor4

barndoor3

barndoor2

barndoor1

door1

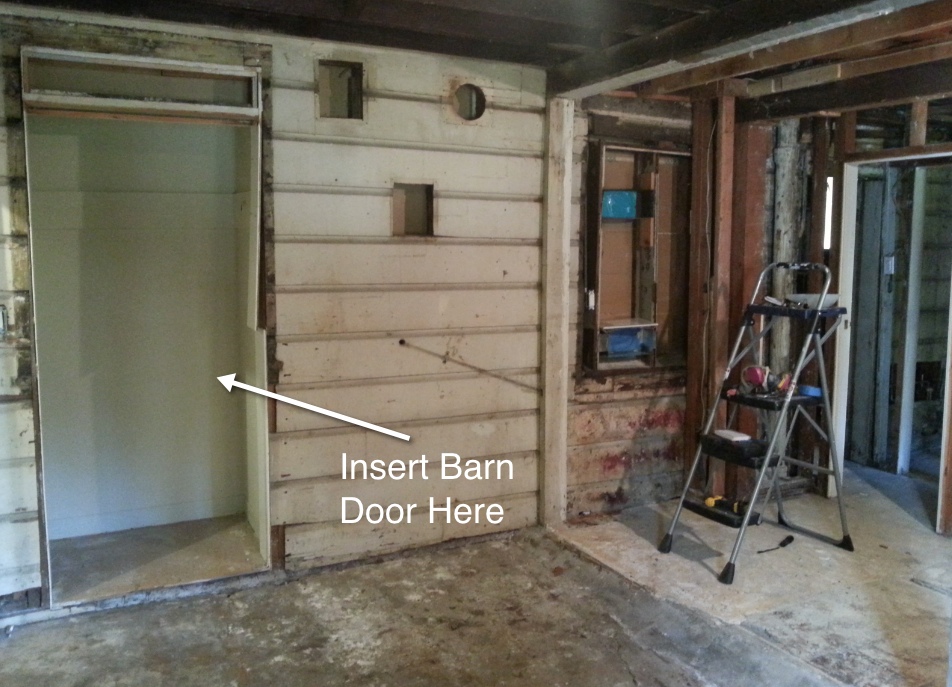

Here is a picture of where the closet is located in the room.  This door would be one of the first things  a person will see when entering the space, making it that much more important that it sets the tone for the design.

door2

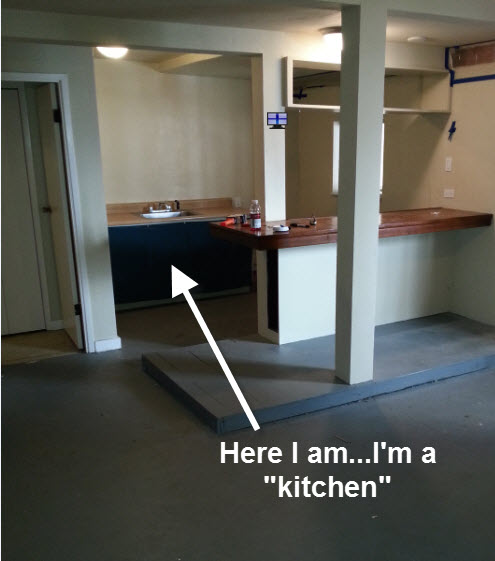

The original In Law unit had, what one might call, a ‘kitchenette.”  I’m not sure if a sink, an exposed gas line and a few electrical plugs count as a kitchenette, but for the sake of argument, let’s call it a kitchenette.

kitchenette

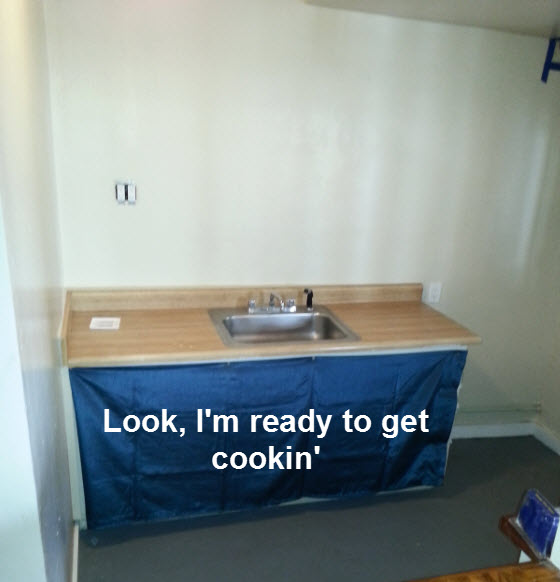

kitchen8

The question that is currently at hand is whether or not the new In Law should have a kitchenette.  The space is not particularly large, so adding a small kitchen will “eat into” (pun intended) the overall living space.  On the other hand, having a small kitchen would allow our visitors, or even future renters, to live a little more independently.  They would no longer need to walk outside, up the deck stairs, and into the back door of the main house to heat up some water for tea.

With this in mind, here are a few kitchenette ideas I’ve found.

kitchen.3

As you can see, if we go the route of kitchenette, it would essentially be a sink, a microwave and a small refrigerator.

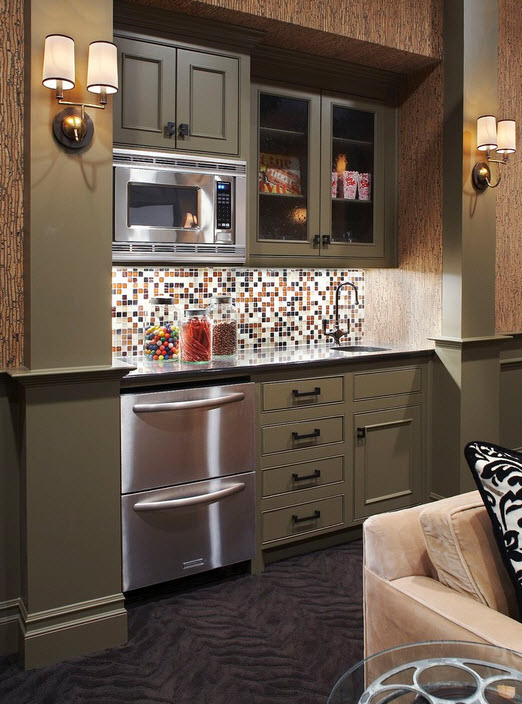

kitchen 4

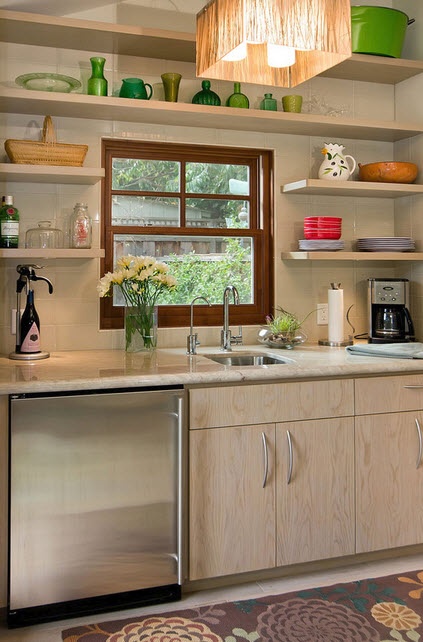

One thing I love about the following option is the window.  Unfortunately, attempting to move the plumbing to accommodate a kitchenette on an outward facing wall might be a bigger expense then we had planned on making.

Kitchen5

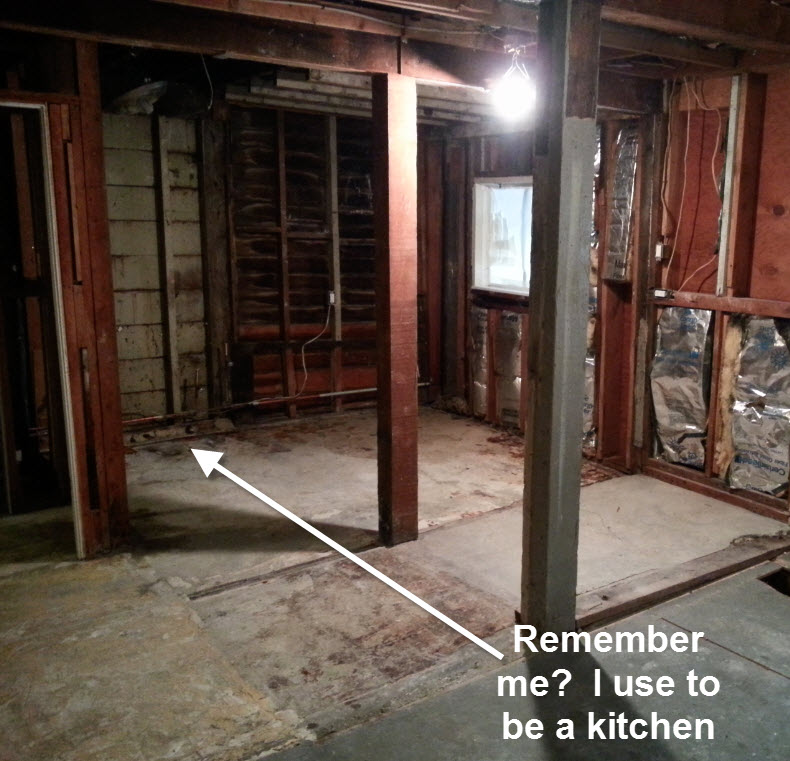

Let’s say we decide that we do want one of these sleek kitchenettes.  Then the question then becomes, where do we put it?

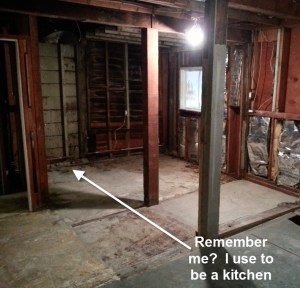

kitchen6

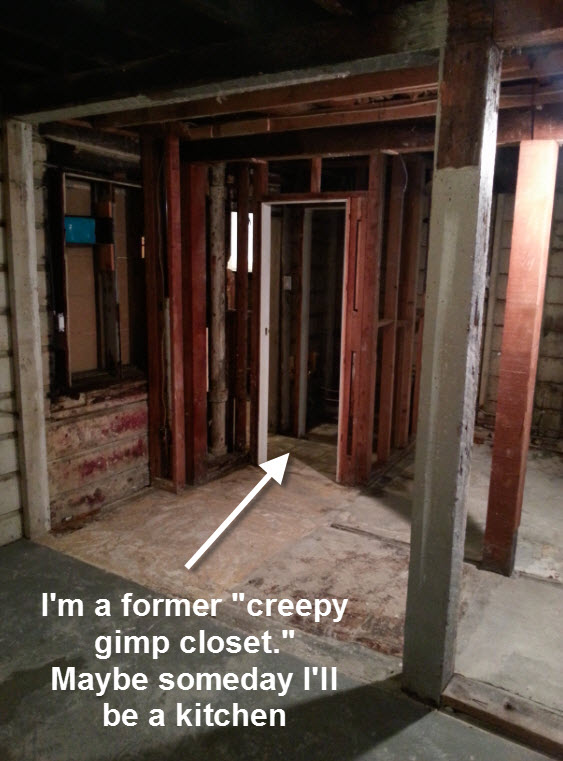

kitchen7

I know that I probably should have started the blog with this information, but better late then never…right?

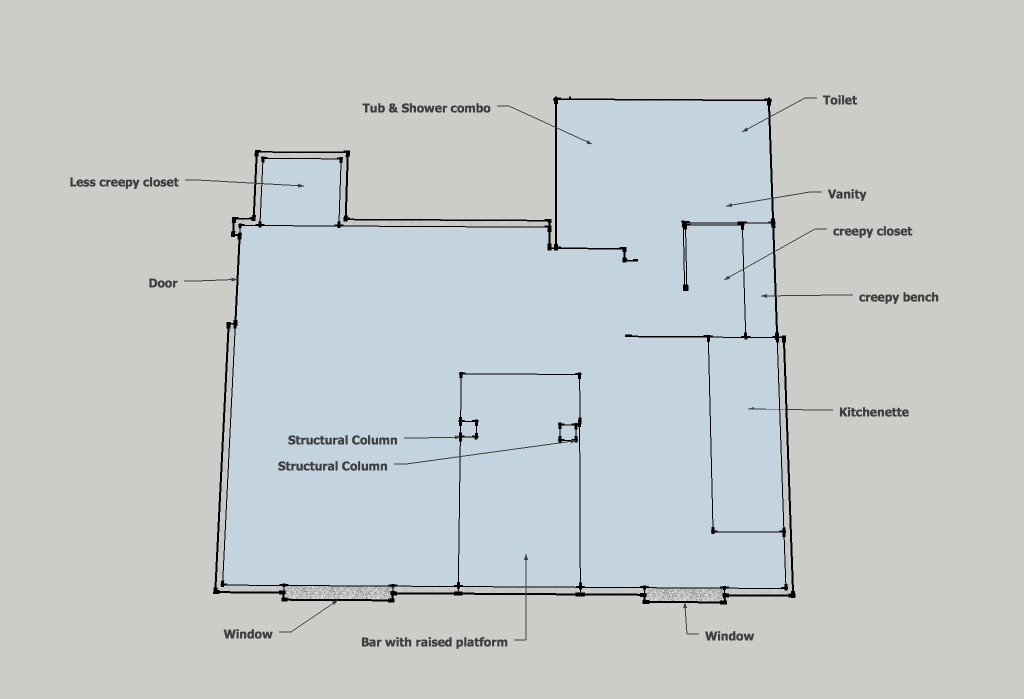

Here’s a map of the current In Law unit’s design.

InLawUnit.old

The bar & kitchenette make the already small space that much smaller.  The goal with this project is to make this space a comfortable ensuite guestroom.  This requires us to remove the kitchenette & bar, along with the “gimp closet.”  The “gimp closet” is in the bathroom and is super creepy.  It’s dark and not particularly functional.  Rather than having shelving or a clothing rack, like most closets, it has a bench.  If, rather then shelving and a place to hang clothing, it has a bench, what are you supposed to put in there?  That’s right…the gimp.  Since our family does not currently have a gimp, the closet will be removed.

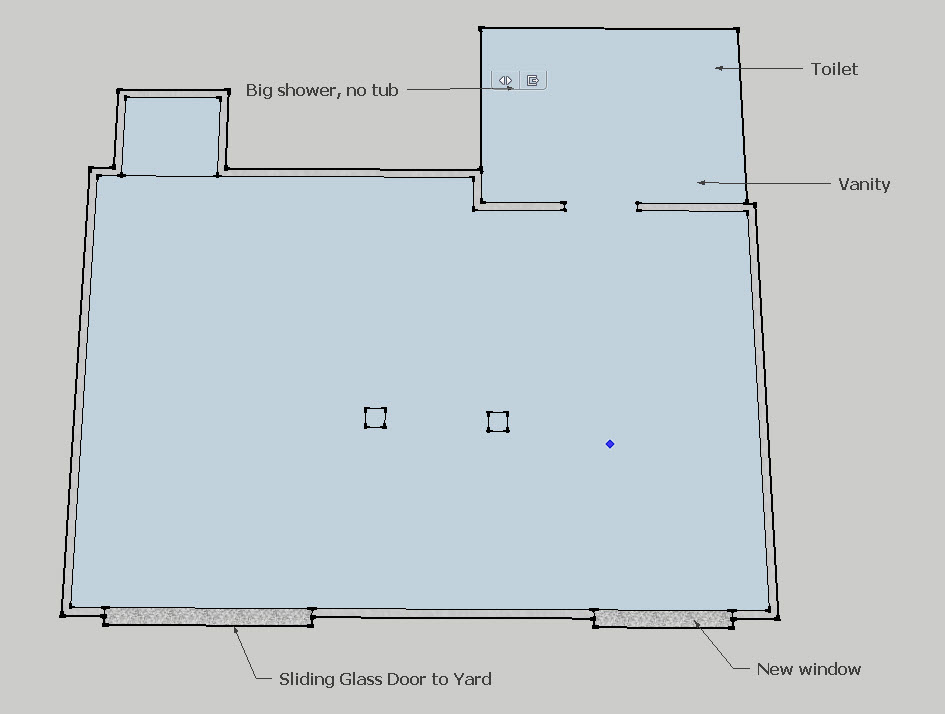

Here’s the design for the future In Law unit:

NewInLawLayout

As you can see, the room will have more of an open floor plan.  We will also be putting in a sliding glass door for easy access to the back yard.

The day is finally here!  I’m taking the plunge!  No, I’m not getting married.  Well, not yet that is.  I’m starting my very first renovation!  I’ve been waiting for this day ever sense I was a kid trying to build a skateboard out of a few planks of wood and some caster wheels.  Let’s hope this project turns out better then that one did.

Speaking of project, let me tell you a little bit about what I’m doing.  Last year my fiancé and I purchased a 1920’s Edwardian house.  Our first grown-up house!  It has two bedrooms, a couple bathrooms and an In Law unit.  This In Law is going to be my first renovation project.

To give you a sense of the current state it is in, when you walk in it smells like a fragrant potpourri of mildew and cigarettes.   Years of neglect have made the space less than ideal as a guest room, which is where I come in!  I have no background in construction, but consider myself an avid DIY’er.  I love getting into things and figuring them out.  I love building things with power tools, and looking online for resources to troubleshoot issues.  I’m also a big fan of HGTV and the DIY Network.  Let’s hope all of this “home schooling” has properly prepared me for what I’m in for.


The In Law is not particularly large. Splitting the room in two is a bar that is on a raised platform. I’m not sure what is under that platform, but I’ll find out soon enough.

The bathroom has a tub/shower combo, a vanity, a toilet and a LOT of mold.


Just another shot of the ugly bathroom.

Stay Tuned…
